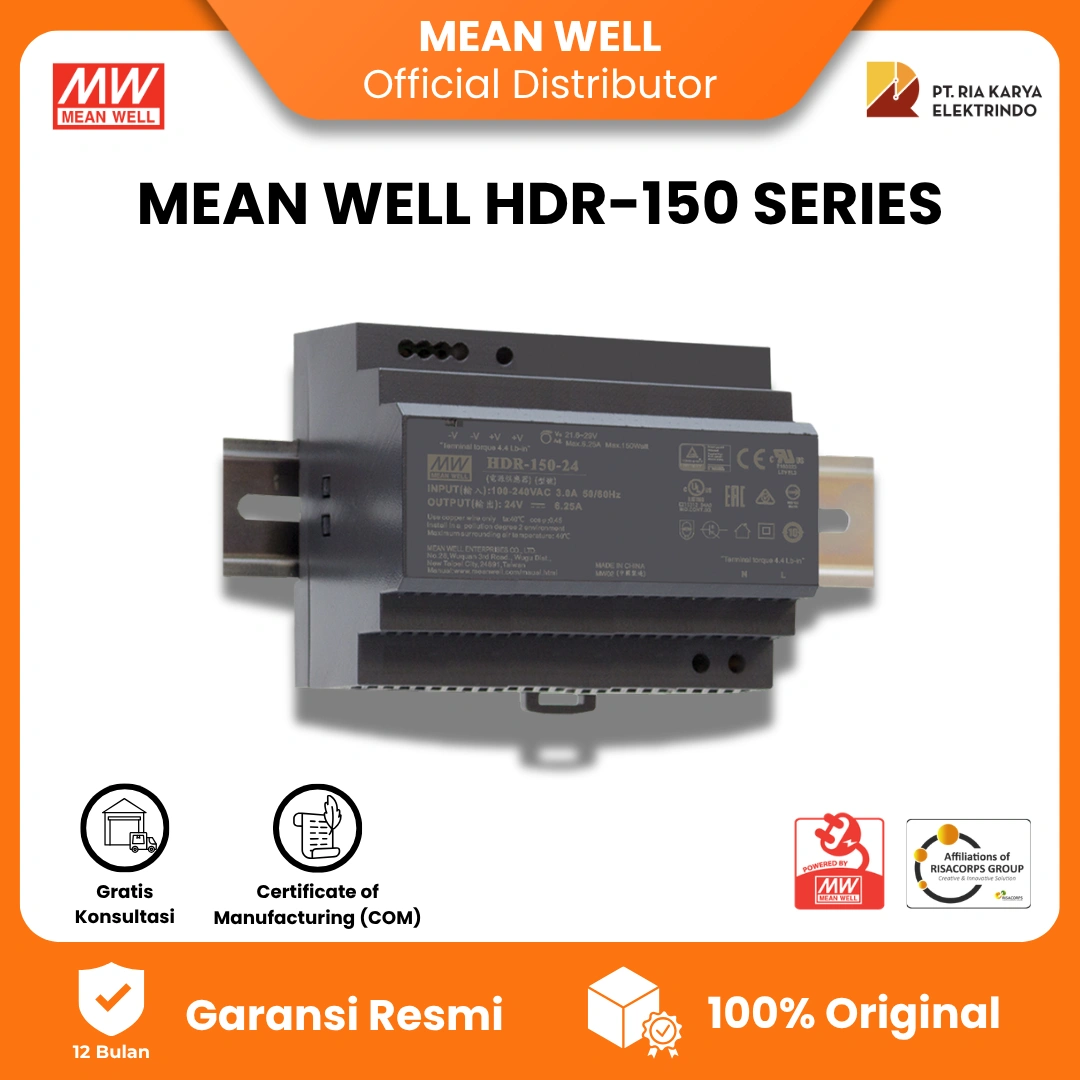

Mean Well HDR-150 Series Ultra Slim Step Shape DIN Rail Power Supply

Available in stock

Features

Model: HDR-150-12 / HDR-150-24 (150W Original)

PT. Ria Karya Elektrindo (Risacorps) adalah AGEN RESMI Power Supply MEAN WELL di Indonesia. Kami menjamin keaslian produk serta menyediakan dukungan purna jual resmi. (MEAN WELL)

Compare

Add to quote

Categories: AC-DC LED Driver, Din Rail, Power Supply

Description
Reviews (0)

Description

Spesifikasi Teknis

Merek: Mean Well
Seri: HDR-150 Series
Tipe: Ultra Slim Step Shape DIN Rail Power Supply
Model: HDR-150-12 / HDR-150-24
Daya: 135W (12V) / 150W (24V)
Dimensi: 105 × 90 × 54.5 mm (6SU lebar) (P × L × T)
Input Voltage: 85 ~ 264VAC / 120 ~ 370VDC
Frequency Range: 47 ~ 63Hz
No Load Power Consumption: <0.5W
Efficiency: Hingga 90.5%
Proteksi: Short Circuit, Over Load, Over Voltage, Over Temperature
Cooling: Free Air Convection
Housing: Plastic Case
Kelas Isolasi: Class II (Tanpa Ground / FG)
Mounting: DIN Rail TS-35/7.5 atau TS-35/15
Garansi: 3 Tahun (Mean Well)

Spesifikasi Output HDR-150-12

Output Voltage: 12VDC
Rated Current: 11.3A
Current Range: 0 ~ 11.3A
Rated Power: 135.6W
Voltage Adjustable Range: 10.8 ~ 13.8V (Dapat disesuaikan via potensiometer depan)
Voltage Tolerance: ±1.5%
Line Regulation: ±1.0%
Load Regulation: ±1.0%
Ripple & Noise (Max.): 100mVp-p
Efficiency: Hingga 89% (Mean Well)

Spesifikasi Output HDR-150-24

Output Voltage: 24VDC
Rated Current: 6.25A
Current Range: 0 ~ 6.25A
Rated Power: 150W
Voltage Adjustable Range: 21.6 ~ 29V (Dapat disesuaikan via potensiometer depan)
Voltage Tolerance: ±1.0%
Line Regulation: ±1.0%
Load Regulation: ±1.0%
Ripple & Noise (Max.): 150mVp-p
Efficiency: Hingga 90.5% (Mean Well)

Fitur Utama

Desain bodi Ultra Slim Step Shape standar 6SU (105 mm) yang pas untuk panel distribusi daya standar industri maupun residensial.
Universal AC input dengan rentang tegangan lebar 85 ~ 264VAC (277VAC operational).
Desain Class II Isolation (tidak memerlukan koneksi ground/FG).
Konsumsi daya tanpa beban sangat rendah (no load power consumption <0.5W).
Dilengkapi DC Output Voltage Adjustable melalui potensiometer di panel depan.
Memenuhi standar keselamatan Overvoltage Category III (OVC III).
Indikator LED untuk memantau status daya aktif (Power On).
Sistem proteksi lengkap: Short Circuit, Over Load (constant current limiting), Over Voltage, dan Over Temperature.
Pendinginan alami tanpa kipas (Free Air Convection).
Cocok untuk sistem otomasi gedung (building automation), kontrol otomasi industri, sistem manajemen energi, smart home, dan panel IoT/instrumentasi. (MEAN WELL)
