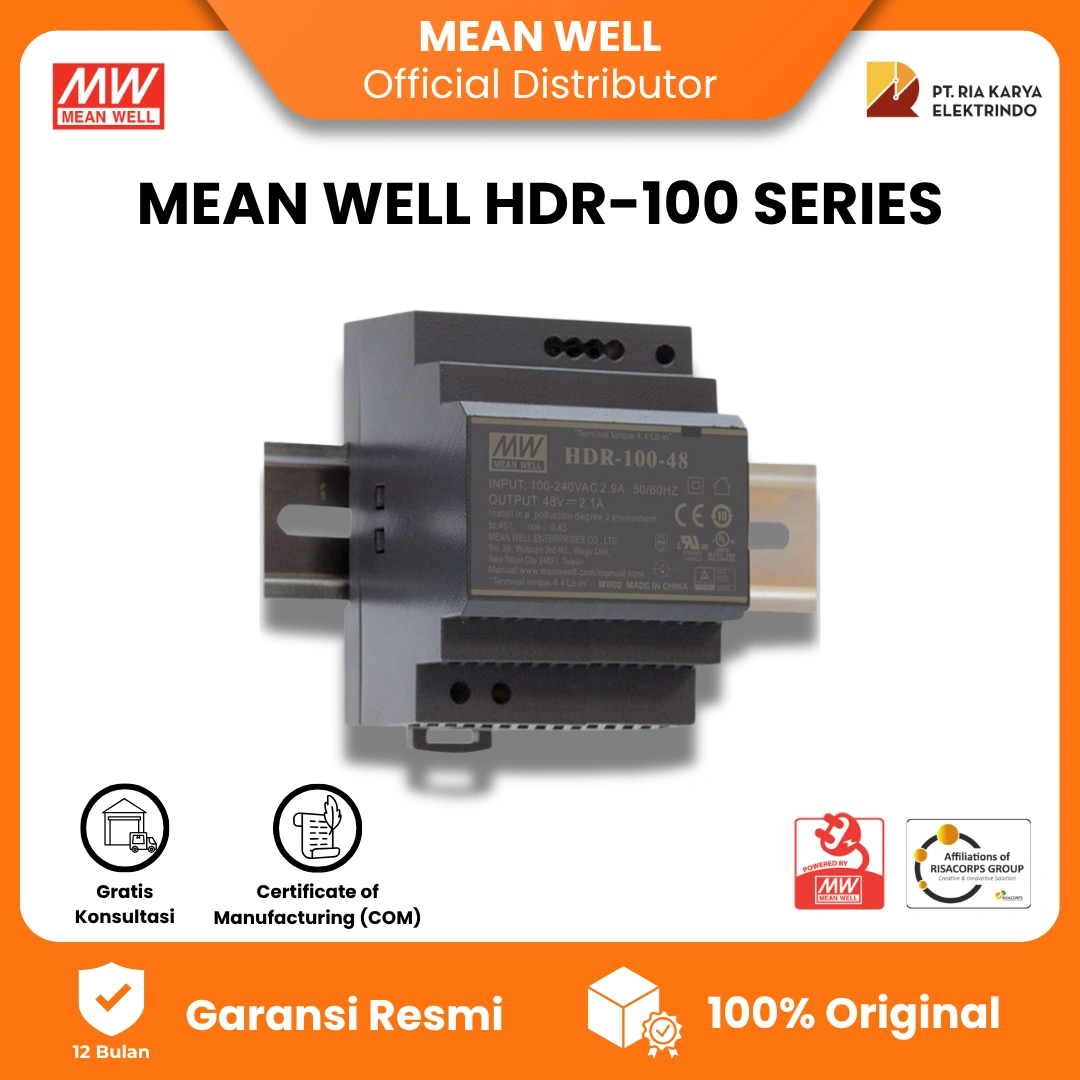

Mean Well HDR-100 Series Ultra Slim Step Shape DIN Rail Power Supply

Name: Mean Well HDR-100 Series Ultra Slim Step Shape DIN Rail Power Supply - Toko Ria Karya
Availability: InStock

in AC-DC LED Driver

Price range: Rp590.000 through Rp606.000

Available in stock

Features

Model: HDR-100-12 / HDR-100-24 (100W Original)

PT. Ria Karya Elektrindo (Risacorps) adalah AGEN RESMI Power Supply MEAN WELL di Indonesia. Kami menjamin keaslian produk serta menyediakan dukungan purna jual resmi. (MEAN WELL)

HDR 100

Clear

Compare

Add to quote

Categories: AC-DC LED Driver, Din Rail, Power Supply

Description

Spesifikasi Teknis

Merek: Mean Well
Seri: HDR-100 Series
Tipe: Ultra Slim Step Shape DIN Rail Power Supply
Model: HDR-100-12 / HDR-100-24
Daya: Hingga 92W (12V) / 100W (24V)
Dimensi: 70 × 90 × 54.5 mm (4SU lebar) (P × L × T)
Input Voltage: 85 ~ 264VAC / 120 ~ 370VDC
Frequency Range: 47 ~ 63Hz
No Load Power Consumption: <0.5W
Efficiency: Hingga 90%
Proteksi: Short Circuit, Over Load, Over Voltage
Cooling: Free Air Convection
Housing: Plastic Case
Kelas Isolasi: Class II (Tanpa Ground / FG)
Mounting: DIN Rail TS-35/7.5 atau TS-35/15
Garansi: 3 Tahun (Mean Well)

Spesifikasi Output HDR-100-12

Output Voltage: 12VDC
Rated Current: 7.1A (Standard Model) / 7.5A (Peak)
Current Range: 0 ~ 7.1A
Rated Power: 85.2W
Voltage Adjustable Range: 12 ~ 13V (Dapat disesuaikan via potensiometer depan)
Voltage Tolerance: ±2.0%
Line Regulation: ±1.0%
Load Regulation: ±1.0%
Ripple & Noise (Max.): 120mVp-p
Efficiency: Hingga 88% (Mean Well)

Spesifikasi Output HDR-100-24

Output Voltage: 24VDC
Rated Current: 3.83A (Standard Model) / 4.2A (Peak)
Current Range: 0 ~ 3.83A
Rated Power: 92W
Voltage Adjustable Range: 24 ~ 25.5V (Dapat disesuaikan via potensiometer depan)
Voltage Tolerance: ±1.0%
Line Regulation: ±1.0%
Load Regulation: ±1.0%
Ripple & Noise (Max.): 150mVp-p
Efficiency: Hingga 90% (Mean Well)

Fitur Utama

Desain bodi Ultra Slim Step Shape berukuran 70 mm (4SU) yang dirancang pas untuk box panel distribusi standar.
Universal AC input rentang 85 ~ 264VAC (277VAC operational).
Desain Class II Isolation (tidak membutuhkan koneksi kabel ground/FG).
Konsumsi daya tanpa beban sangat hemat (no load power consumption <0.5W).
Output tegangan DC dapat disesuaikan (DC Output Voltage Adjustable) via potensiometer di panel depan.
Sesuai dengan standar keselamatan Overvoltage Category III (OVC III).
Dilengkapi indikator LED untuk status operasional aktif (Power On).
Sistem proteksi lengkap: Short Circuit, Over Load (constant current limiting), dan Over Voltage.
Pendinginan konveksi udara alami tanpa kipas (Free Air Convection).
Sangat cocok untuk sistem manajemen gedung (building automation), kontrol otomasi industri, smart home, sistem distribusi daya perumahan, dan instrumentasi. (MEAN WELL)
