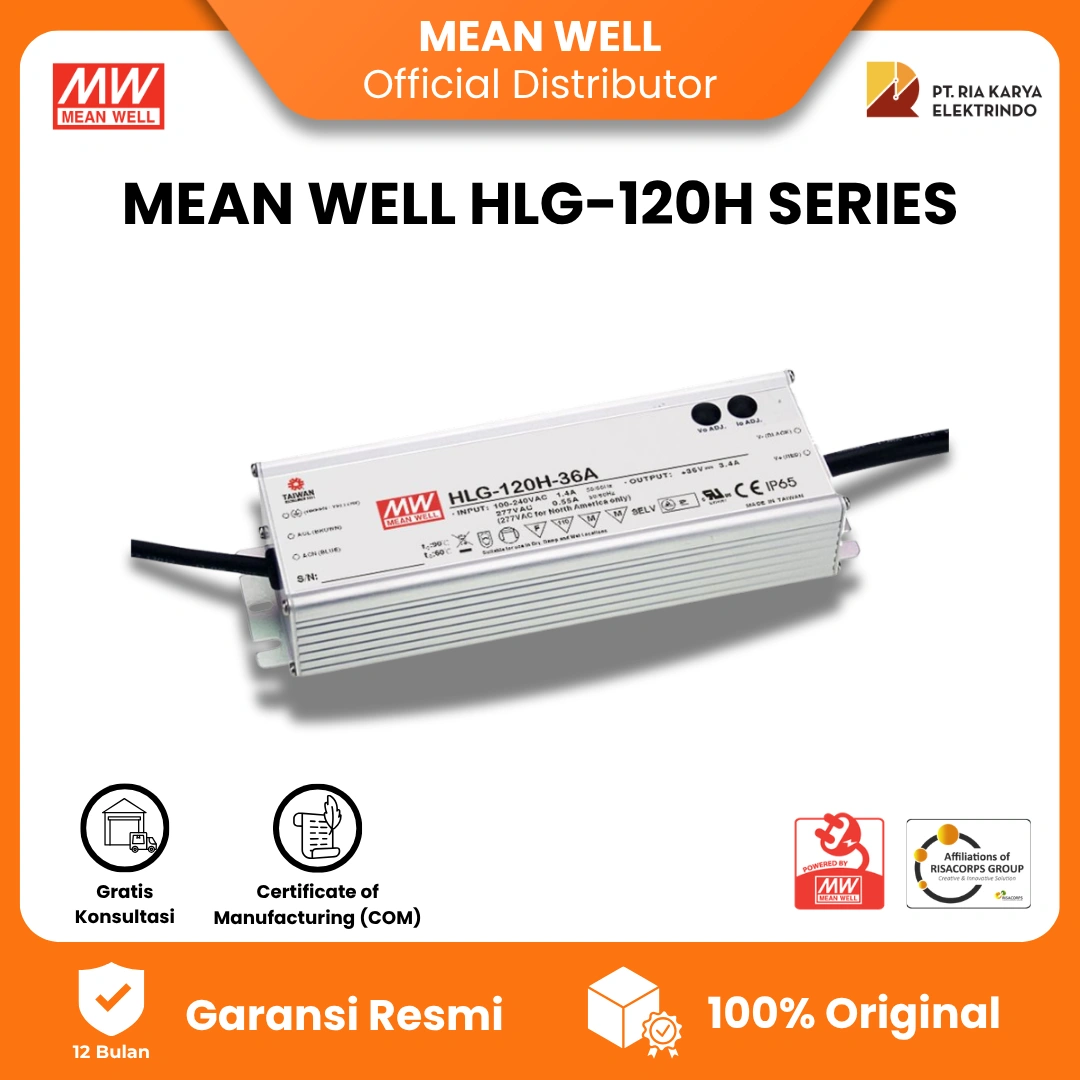

Mean Well HLG-120H Series LED Driver

Name: Mean Well HLG-120H Series LED Driver - Toko Ria Karya
Price: 1195000 IDR
Availability: InStock

in AC-DC LED Driver

Rp1.195.000

Available in stock

Features

Model: HLG-120H-48A / HLG-120H-48B / HLG-120H-36A (120W Original)

PT. Ria Karya Elektrindo (Risacorps) adalah AGEN RESMI Power Supply MEAN WELL di Indonesia. Kami menjamin keaslian produk serta menyediakan dukungan purna jual resmi. (MEAN WELL)

HLG 120 Series

Clear

Compare

Add to quote

Categories: AC-DC LED Driver, Power Supply

Description

Spesifikasi Teknis

Merek: Mean Well
Seri: HLG-120H Series
Tipe: AC/DC LED Driver (Constant Voltage + Constant Current Mode)
Model: HLG-120H-48A / HLG-120H-48B / HLG-120H-36A
Daya: 120W
Dimensi: 220 × 68 × 38.8 mm (P × L × T)
Input Voltage: 90 ~ 305VAC / 127 ~ 431VDC
Frequency Range: 47 ~ 63Hz
Power Factor (Typ.): PF ≥ 0.98/115VAC, PF ≥ 0.95/230VAC, PF ≥ 0.92/277VAC pada beban penuh
Efficiency: Hingga 94%
Proteksi: Short Circuit, Over Current, Over Voltage, Over Temperature
Cooling: Free Air Convection
Housing: Metal Case (Aluminum)
Kelas Isolasi: Class I (Dengan Earth Ground)
IP Rating: IP65 (Tipe A) / IP67 (Tipe B)
Garansi: 7 Tahun (Mean Well)

Spesifikasi Output HLG-120H-48A

Output Mode: Constant Voltage + Constant Current Mode (CV + CC)
Output Voltage: 48VDC
Rated Current: 2.5A
Rated Power: 120W
Constant Current Region: 24 ~ 48V
Voltage Adjustable Range: 43 ~ 53V (Dapat disesuaikan via potensiometer internal)
Current Adjustable Range: 1.25 ~ 2.5A (Dapat disesuaikan via potensiometer internal)
Voltage Tolerance: ±1.0%
Line Regulation: ±0.5%
Load Regulation: ±0.5%
Ripple & Noise (Max.): 200mVp-p
IP Rating: IP65
Efficiency: Hingga 94% (Mean Well)

Spesifikasi Output HLG-120H-48B

Output Mode: Constant Voltage + Constant Current Mode (CV + CC)
Output Voltage: 48VDC
Rated Current: 2.5A
Rated Power: 120W
Constant Current Region: 24 ~ 48V
Current Adjustable Range: 1.25 ~ 2.5A (Dapat diredupkan via fungsi 3-in-1 Dimming)
Dimming Function: 3 in 1 dimming (1 ~ 10VDC, 10V PWM signal, atau Resistance)
Voltage Tolerance: ±1.0%
Line Regulation: ±0.5%
Load Regulation: ±0.5%
Ripple & Noise (Max.): 200mVp-p
IP Rating: IP67
Efficiency: Hingga 94% (Mean Well)

Spesifikasi Output HLG-120H-36A

Output Mode: Constant Voltage + Constant Current Mode (CV + CC)
Output Voltage: 36VDC
Rated Current: 3.4A
Rated Power: 122.4W
Constant Current Region: 18 ~ 36V
Voltage Adjustable Range: 32 ~ 39V (Dapat disesuaikan via potensiometer internal)
Current Adjustable Range: 1.7 ~ 3.4A (Dapat disesuaikan via potensiometer internal)
Voltage Tolerance: ±1.0%
Line Regulation: ±0.5%
Load Regulation: ±0.5%
Ripple & Noise (Max.): 200mVp-p
IP Rating: IP65
Efficiency: Hingga 93.5% (Mean Well)

Fitur Utama

Desain Dual Mode Constant Voltage (CV) dan Constant Current (CC) untuk fleksibilitas aplikasi pencahayaan LED.
Universal AC input dengan rentang lebar 90 ~ 305VAC dan fungsi Active PFC bawaan.
Opsi penyesuaian: Tipe A dilengkapi potensiometer internal untuk Vo/Io (IP65), sedangkan Tipe B dilengkapi kabel kendali 3-in-1 dimming (IP67).
Housing aluminium kokoh tahan korosi dan cuaca ekstrem untuk pemakaian indoor maupun outdoor.
Proteksi surge level tinggi: Line-Earth: 4KV, Line-Line: 2KV.
Sistem proteksi lengkap: Short Circuit, Over Current, Over Voltage, dan Over Temperature.
Pendinginan alami tanpa kipas (Free Air Convection) dengan tingkat kebisingan nol.
Keandalan luar biasa dengan perkiraan umur pakai >62.000 jam serta didukung garansi resmi 7 tahun.
Sangat ideal untuk lampu jalan LED (street lighting), high-bay lighting, parking space lighting, floodlight, greenhouse lighting, dan pencahayaan outdoor/industrial. (MEAN WELL)
